Building materials
Dollar Tree = DT
HobbyLobby = HL
Lowes = LW
Walmart = WM
Hobby King = HK
1- A couple sheets of dollar tree foam board (x3) DT
2- 2" Nylon reinforced packing tape (AKA clear duct tape) LW WM
3- 2 x 1 3/4" hobby plywood 1.5mm thick or similar. HL
4- a couple of bamboo skewers DT, WM
5- hot glue, WM, HL, LW, DT
6- credit card material for control horns (AKA plastic card, go get a new Kroger club card and cut it up if you need to)
7- control rods HK
If you have any questions reguarding the build or the materials please don't hesitate to ask! You can contact;
Jeremiah Stapleton on Facebook or via stape.jeremiah@gmail.com
Dallas Stroud dallas.stroud@yahoo.com
Milo Rush miloruch@yahoo.com
Thank you!
Component list for Scat Racer
1- (2) 9gram servos for elevator and aileron
2- 20 AMP ESC or higher(HK 30amp works well)
3- 3s LiPo battery (any size) such as the Zippy compact 1500mah
4- FC 28-12 Brushless outrunner 1534kv
5- JXF 7x6 prop
6- prop adapter for 3mm shaft different one, any will work that are 3mm

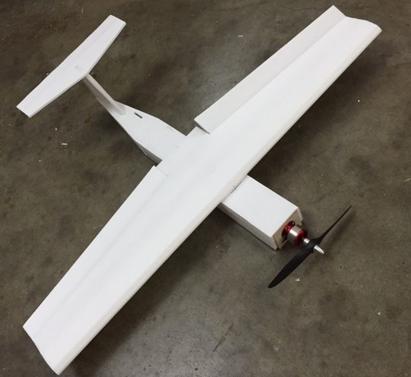

This Racer was designed by Jerimah Stapleton to be a fun, cheap, club pylon racer.
The plans are provided by Jerimah Stapleton free of charge with the understanding that no one will copy or sell the plans for profit.
Most of it's components are found at hobbyking.com however many can also be found at local hobby stores and other online hobby sites

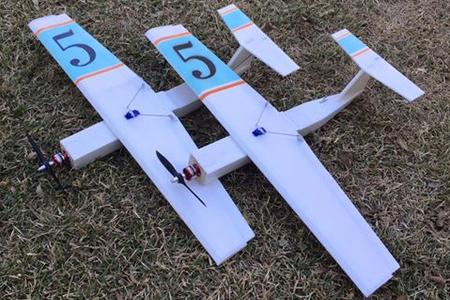

SCAT PYLON RACER
AMA Gold Club #1659
